In case of doubt about the possibility of fabricating the desired bend, please inquiry by sending a sketch along with dimensions and required quantities at sales@gogbar.com
Table - 01
#
DIA - (mm)
A & G - MAX (mm)
B - MIN (mm)
B - MAX (mm)
#2
6.4
1746
225
1876
#3
9.5
1746
225
1876
#4
12.7
1778
257
1908
#5
15.9
1810
289
1940
#6
19.0
1842
321
1972
#7
22.2
1842
321
1972
#8
25.4
1905
284
2035

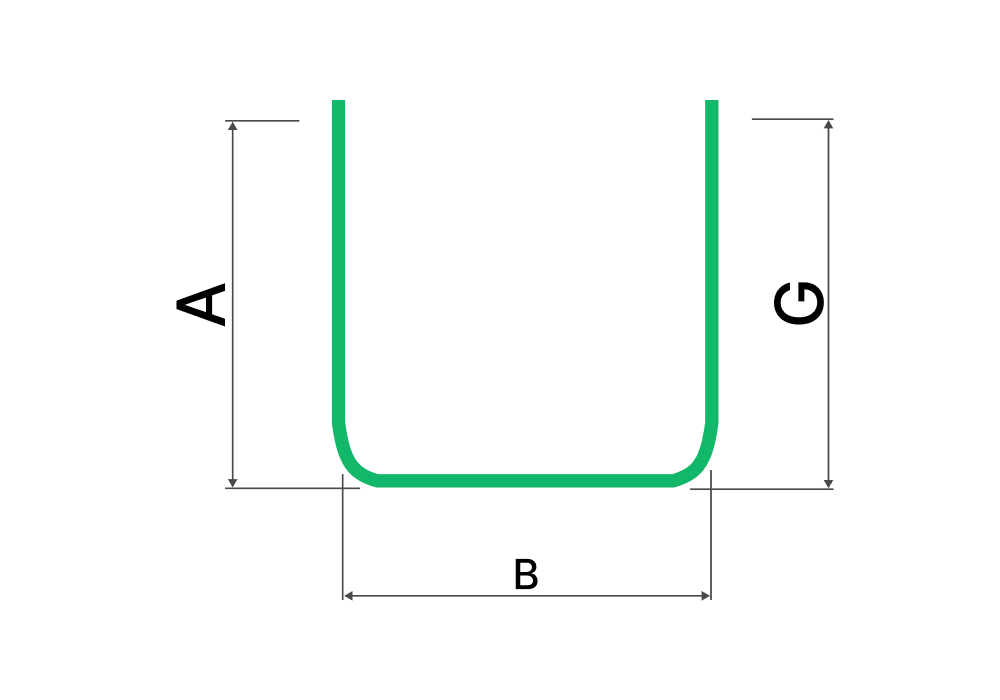

If the “A” or “G” dimension exceed the maximum dimension shown in table 1, maximum and minimum dimensions need to be modified as per table 2
Table - 02
#
DIA - (mm)
A & G - MAX (mm)
B - MIN (mm)
B - MAX (mm)
#2
6.4
1876
470
1746
#3
9.5
1876
470
1746
#4
12.7
1908
502
1778
#5
15.9
1940
533
1810
#6
19.0
1972
565
1842
#7
22.2
1972
565
1872
#8
25.4
2035
629
1905
If the “B” dimension is smaller than the minimum dimension shown in table 1, maximum dimensions for “A” and “G” need to be modified as per table 3
Table - 03
#
DIA - (mm)
A & G - MAX (mm)
B - MIN (mm)
B - MAX (mm)
#2
6.4
1063
133
225
#3
9.5
1063
133
225
#4
12.7
1095
165
257
#5
15.9
1127
197
289
#6
19.0
1159
229
321
#7
22.2
1222
229
321
#8
25.4
1222
292
284
Other combinations of “A”, “B” and “G” may be possible. Bigger shapes may be available upon request.
In case of doubt about the possibility of fabricating the desired bend, please inquiry by sending a sketch along with dimensions and required quantities at sales@gogbar.com
